| ASTM C-39 | |

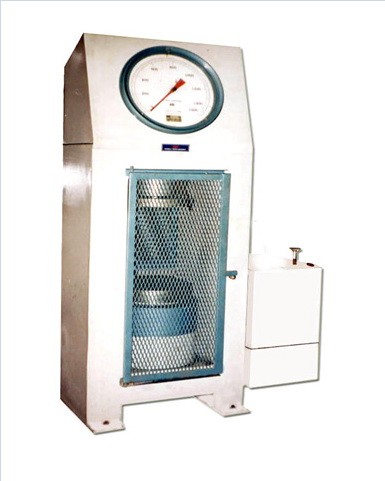

| For determining compressive strength of concrete cube 15 x 15 x15 cm or concrete cylinder 15 cm dia. x 30 cn height | |
| Frame | Heavy-duty welded steel construction 30 cm |
| (profile steel columns 7.5 thick botttom and upper plate) | |
| Hydraulic System | Mild steel cylinder, |
| For 2000 kN Cap. | Hard-chromed piston, 230 mm diameter |
| Maximum working pressure 50.000 kPa | |
| Overall dimension 300 mm dia. x 320 mm height | |
| Single action, gravity return | |
| Hydraulic Pump | Electric, 220 V AC, 50-60 HZ, 750 Watt, 1 Phase |
| Single action, | |
| 6.000 ml reservoir capacity | |
| Maximum working pressure 50.000 kPa | |
| Single action, gravity return | |
| Force Gauge | Bourdon tube manometer, 280 mm dial diameter |
| With maximum load pointer. Steel box housing. | |
| Increments 10 kN , Calibrated by JNK | |
| Compressive | Upper : 180 x 180 mm, ball seating |
| Platen | Lower : 250 mm diameter |
| Clearance | Horizontal: 290 mm |
| Vertikal : 310 mm | |
| Dimension | 760 x 320 x 1400 mm (l x w x h) approx. |
| Weight | 500 kg |
